Hydraulic Crawler Soil Drilling Rig Rotary Drilling Sampling Soil Investigation Rig

Product Categories
Shannxi Xitan Geological Equipement Co.,Ltd
Contact Now

Hydraulic Crawler Soil Drilling Rig Rotary Drilling Sampling Soil Investigation Rig

Brand Name : XiTan Equipment

Model Number : EDS-70

Certification : CE; ISO9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiation

Payment Terms : T/T

Supply Ability : 200 sets/year

Delivery Time : 7-120 days

Packaging Details : Nude Package in 40HP Container

Product Name : Environmental Drill Rigs

Condition : New

Drill Hole Diameter : 86-150 mm

Drill Hole Depth : 120 m

Bit Type : Diamond Bit/PDC bit

Specification : (working) 4130X1900X3160 mm

Drilling Way : Direct push, Rotary

Contact Now

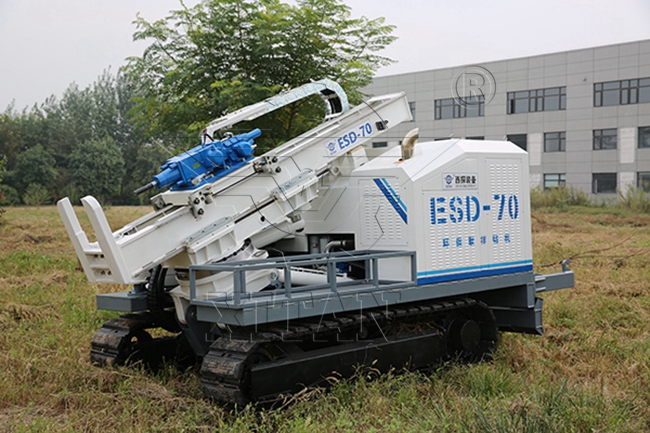

Hydraulic Crawler Soil Drilling Rig Rotary Drilling Sampling Soil Investigation Rig ESD-70

ESD -70 soil drilling rig is soil sampling equipment gaining traction. Soil sampling drills with compact units are far gentler to turf and can work in confined spaces. If you plan to conduct a lot of SPT, you will want a drill with an automatic hammer to reduce worker fatigue, creating a safer and more productive job site. Because an automatic hammer configuration will add weight to the rig, be sure you have a vehicle with ample towing capacity to handle it.

Hydraulic Crawler Soil Drilling Rig Rotary Drilling Sampling Soil Investigation Rig

Technical Data:

Mode ESD-70
Sampling Depth 30m
Sampling Diameter 110mm(the depth of sampling will be reduced)
Power Head Impact Frequency ≥3,000 Hz
Impact Power Head
Torque 950 N·m
Rotation Speed 200rpm
Impact Frequency 3120/3990/4800 Hz
Impact Power 14.5 KW
Lifting Power 12t
Rotary Power Head
Torque 4000/8000 N·m
Rotation Speed 92/46 rpm
Feeding System
Stroke 1700mm
Feeding Force 100kN
Lifting Force 160kN
Power System
Power 75 kw/2500 rpm
Engine Model Dongfeng Cummins QSB3.9-C100-31
Size Transmission 4000X1800X2900 mm
Working 4130X1900X3160 mm
Weight 7t
